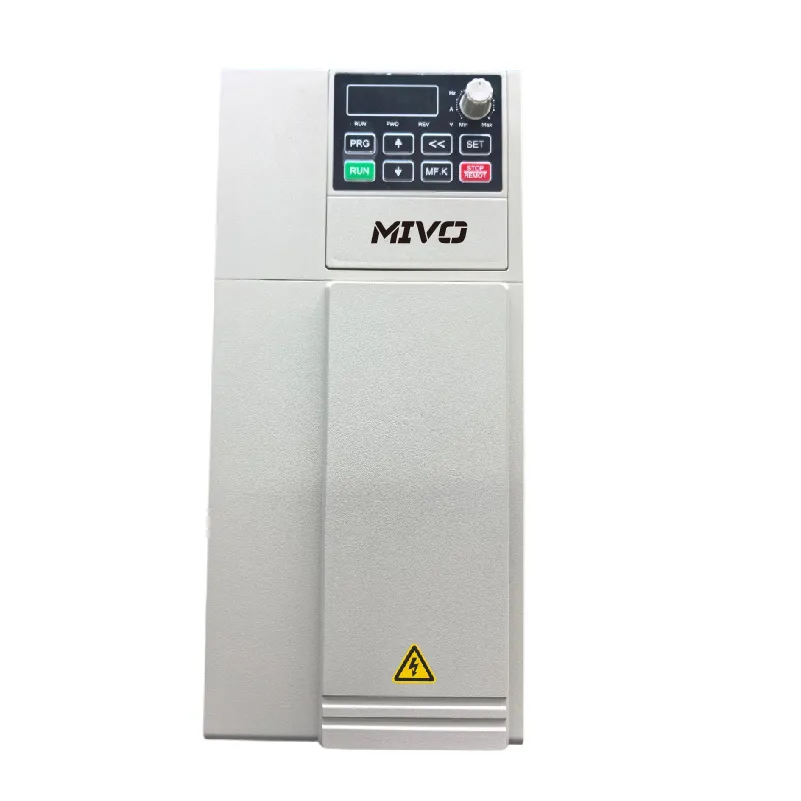

MV600 Vector Control Drive

· Brand: MIVO

· Product origin: China

· Delivery time: 3-7 working days

· Supply capacity: 200-500pcs/day

Inquire Now

About this item

The MV600 series Variable Frequency Drives (VFDs) represent a product engineered on a robust software and hardware platform, characterized by its exceptional driving and control capabilities. The software, equipped with formidable functionalities, offers a significant improvement in usability and reliability over comparable products. It is designed to adapt to the unique demands of specific industries. Currently, a range of industry-specific products has been developed, including photovoltaic water pumps, constant pressure water supply systems, and high-speed spindle series, which are capable of effectively meeting the varied requirements across different industrial control scenarios.

MV600 High-Performance Vector Control Variable Frequency Drive Motor AC Drive

Product information

1.Superior control performance: it supports both open-loop vector control and open-loop torque control.

2. Compact Design: Utilizing the latest generation of IGBTs, which boast high junction temperatures, high power density, and a reduced machine size.

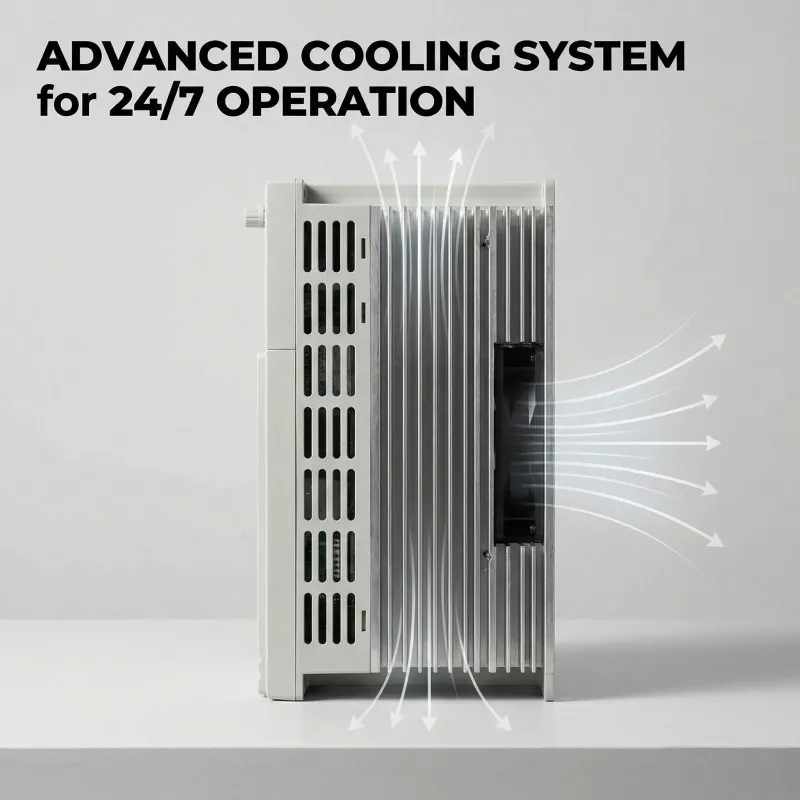

3. Independent Airflow Design: The completely enclosed shell features an independent airflow system, which significantly reduces the overall failure rate.

4. Support for high frequency: Capable of supporting outputs of 5 kHz or higher, with exceptional high-frequency performance.

5. Plentiful product configurations and interfaces, together with powerful functions.

6.Standard built-in RS-485 communication interface, equipped with numerous input and output terminals, offering an external keyboard interface.

7. Meet the on-site application requirements more effectively;

MV600 High-Performance Vector Control Variable Frequency Drive Motor AC Drive

Technical specification

Input and output characteristics	Rated input voltage	200V voltage level: single/three-phase 220VAC
	Rated input voltage	400V voltage level: three-phase 380VAC voltage, continuous fluctuation ±10%, brief fluctuation -15% to +10%
	Rated inputfrequency	50Hz/60Hz±5%
	Output Voltage	3 phases: 0 to rated input voltage, error less than ±3%
	Output Frequency	0.00～500.00Hz, unit 0.01Hz
	Overload capacity	150% 1 minute; 180% 10 seconds; 200% 0.5 seconds
Operation control characteristics	Control method	V/f controlPG-free vector control (SVC)
	Speed range	1:100 (V/f)1:200 (SVC)
	Speed controlaccuracy	±0.5% (V/f control)±0.2% (SVC)
	Speed fluctuations	±0.3% (SVC)
	Torque Response	<10ms (SVC)
	Starting torque	0.5Hz: 180% (V/f, SVC)0.25Hz: 180% (SVC)
Basic Functions	V/F curve	Three ways: linear; multi-point; Nth order V/F curve
	V/F separation	2 ways: full separation, semi-separation
	Acceleration and deceleration curves	Straight line or S curve acceleration and deceleration mode; four acceleration and deceleration times; acceleration and deceleration time range 0.0~60000s
	DC brake	DC braking frequency: 0.00Hz~maximum frequency, braking time:0.0s~30.0s, braking action current value: 0.0%~ 100.0%
	Pointing control	Pointing frequency range: 0.00Hz~50.00Hz; pointing acceleration and deceleration time 0.0s~60000s
	Simple PLC,multi-segmentoperation	Up to 16-speed operation via built-in PLC or control terminal
	Built-in PID	Easy to implement closed-loop control system for process control
	Automatic VoltageRegulation (AVR)Over-pressure andover-drain speedcontrolFast current limiting function	When the grid voltage changes, it can automatically maintain the output voltage constant
		Automatic limitation of current and voltage during operation to prevent frequent over-current and over-voltage tripping
		Minimize overcurrent faults and protect products from normal operation
	Torque limiting and control	Automatic torque limitation during operation to prevent frequent overcurrent tripping
	Input terminals	Six switching input terminals, including X6 for high-speed pulseinput. Support active open collector NPN, PNP and dry contact input mode, two analog input terminals, one for voltage and current input optional, one for voltage input
	Output terminals	A high-speed pulse output terminal, 0 ~ 50kHz square wave signaloutput, can realize the set frequency, output frequency and other physical quantity output, a switch output terminal, a set of relayoutput terminal
	Output terminals	One analog output terminal, voltage and current output can be selected to realize the output of physical quantities such as set frequency and output frequency
Featured Features	Various primary and auxiliary feeding and switching, rapid search, selection of multiple acceleration and deceleration curves, holding brake control, up to 16-segment speed operation (two-segment speed supports flexible frequency feeding), swing frequency control operation, fixed length control, counting function, over-excitation braking, over-voltage stalling, under-voltage stalling, power failure restart, skip frequency, frequency binding, four-segment acceleration and deceleration time free switching, motor temperature protection, flexible fan control, process PID control, simple PLC, sag control, parameter recognition, weak magnetic control, high-precision torque limiting, V/f separation control.
Protection function	Power-on motor short-circuit detection, over-current protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, etc.
Environment	Place of use	Indoor, not exposed to direct sunlight, no dust, corrosive gases, flammable gases, oil mist, water vapor, dripping water or salt, etc.
	Altitude	The rated output current will be derated by 1% for every 100 meters of elevation above 1000 meters.
	Ambient temperature	-10℃~40℃ , 40℃~50℃between the derating use, rise 1℃ , the rated output current is reduced by 1%
	Humidity	5～95%, no condensation allowed
	Vibration	Less than 5.9 m/s2 (0.6g)
	Storage temperature	-20℃~+60℃
Other	Installation method	Wall-mounted
	Protection level	IP20
	Cooling method	Forced air cooling

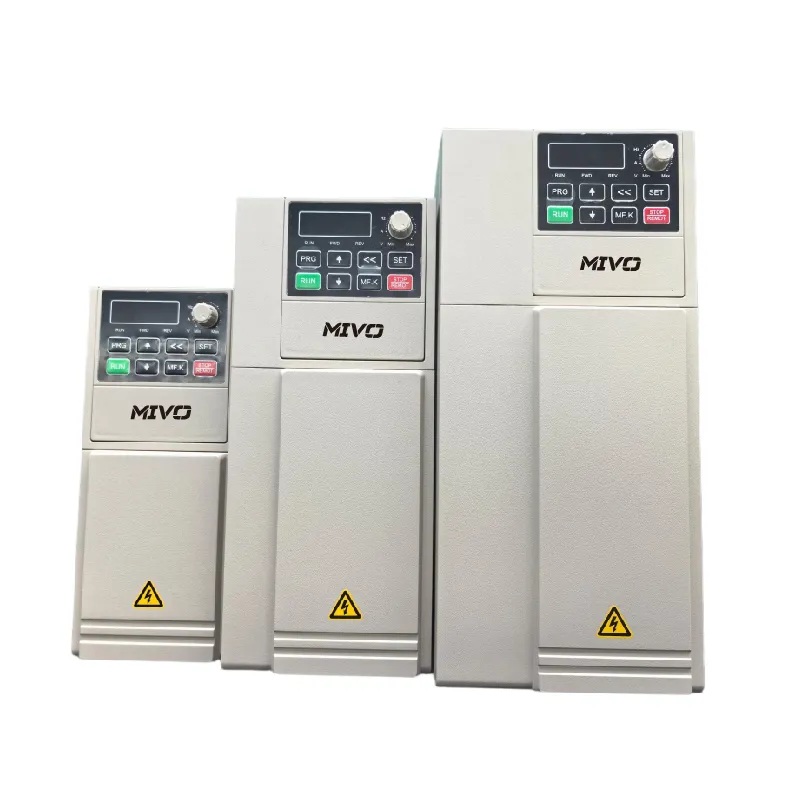

Model List

Product Model	InputCurrent	Output Current	Power supplycapacity	Adapted motor
Product Model	A	A	KVA	kW	Brake Unit
220V voltage level series products
MV600-2S-R75G/ 1R5P	8	4	2.1	0.75	Built-in optional
MV600-2S-1R5G/2R2P	15.2	7	4.2	1.5	Built-in optional
MV600-2S-2R2G/003P	22.1	9.6	5.8	2.2	Built-in optional
MV600-2S-004G/5R5P	35.6	17	11.9	4.0	Built-in optional
MV600-2S/T-5R5G	44/32	25	13.4	5.5	Built-in
MV600-2S/T-7R5G	55/42	32	18.2	7.5	Built-in
MV600-2S/T-011G	65/49	37	22.1	9	Built-in
MV600-2S/T-015G	78/58	45	25	11	Built-in
MV600-2S/T-018G	104/78	60	31	15	Built-in
MV600-2S/T-022G	130/95	75	38	18.5	Built-in
MV600-2S/T-030G	158/112	91	49	22	Built-in optional
MV600-2T-037G	176	150	64	37	Built-in optional
MV600-2T-045G	212	176	75	45
MV600-2T-055G	231	210	90	55
MV600-2T-075G	271	253	132	75
380V voltage level series products
MV600-4T-R75G/ 1R5P	3.8	2.1	2.8	0.75	Built-in optional
MV600-4T-1R5G/2R2P	5	3.8	5	1.5	Built-in optional
MV600-4T-2R2G/004P	6.2	5.1	6.7	2.2	Built-in optional
MV600-4T-004G/5R5P	10.8	9	12	3.7	Built-in optional
MV600-4T-5R5G/7R5P	15.7	13	17.5	5.5	Built-in optional
MV600-4T-7R5G/011P	21	17	22.8	7.5	Built-in
MV600-4T-011G/015P	27.6	25	33.4	11.0	Built-in
MV600-4T-015G/018P	37.2	32	42.8	15.0	Built-in
MV600-4T-018G/022P	41.5	37	45	18.5	Built-in
MV600-4T-022G/030P	49.5	45	54	22	Built-in
MV600-4T-030G/037P	65	60	62	30	Built-in
MV600-4T-037G/045P	81	75	69	37	Built-in
MV600-4T-045G/055P	96	91	81	45	Built-in optional
MV600-4T-055G/075P	118	112	97	55	Built-in optional
MV600-4T-075G/090P	168	150	127	75
MV600-4T-090G/ 110P	189	176	150	90
MV600-4T-110G/ 132P	228	210	179	110
MV600-4T-132G/ 160P	271	253	220	132
MV600-4T-160G/ 185P	329	304	263	160
MV600-4T-185G/200P	326	350	306	185
MV600-4T-200G/220P	410	380	334	200
MV600-4T-220G/250P	452	430	375	220
MV600-4T-250G/280P	505	470	404	250
MV600-4T-280G/315P	560	520	453	280
MV600-4T-315G/355P	645	590	517	315
MV600-4T-355G/400P	756	650	565	355
MV600-4T-400G/450P	799	725	629	400

Application
