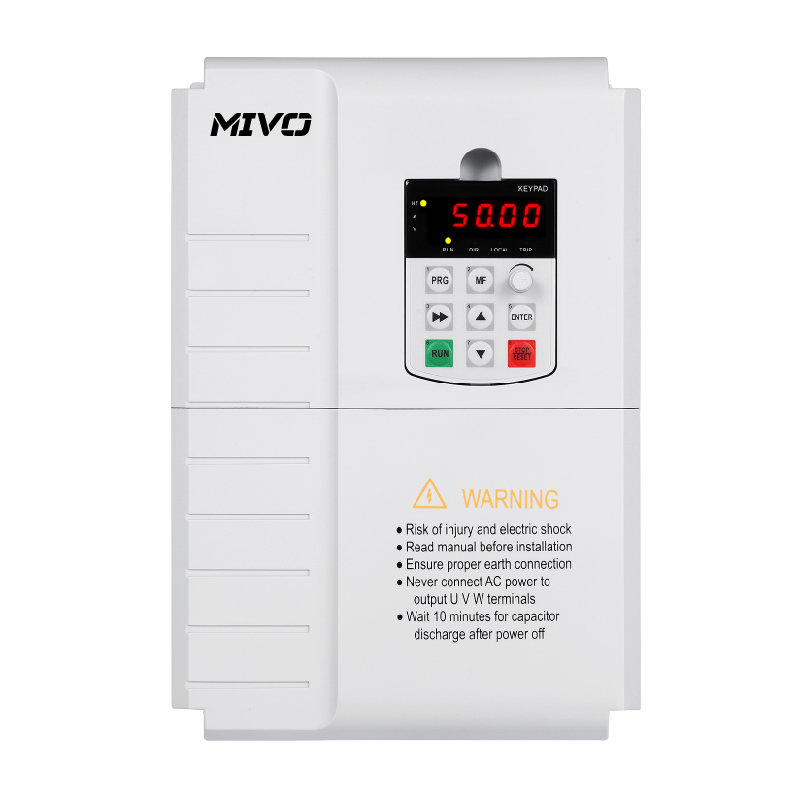

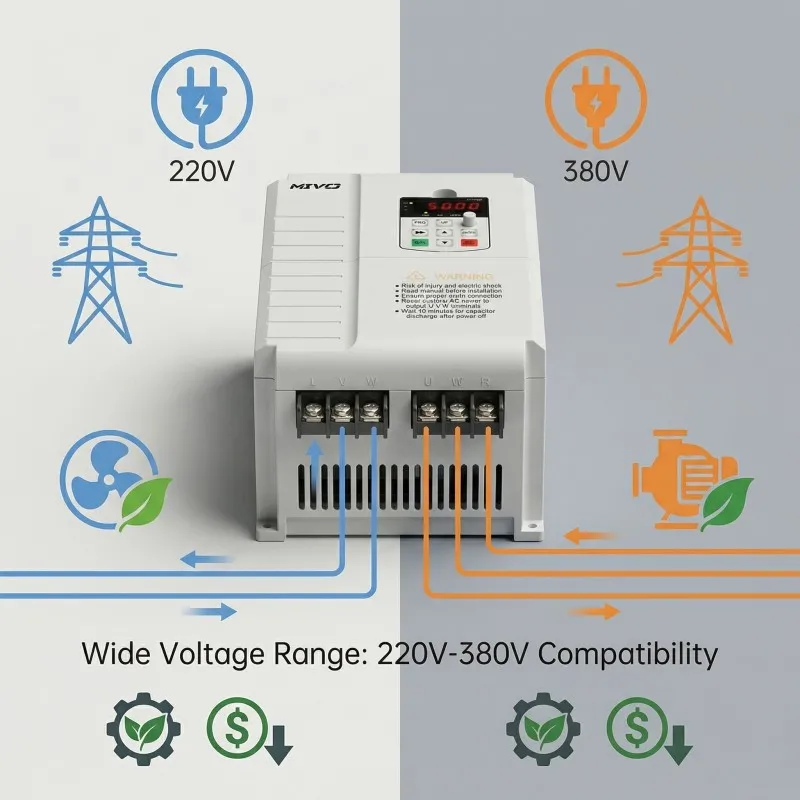

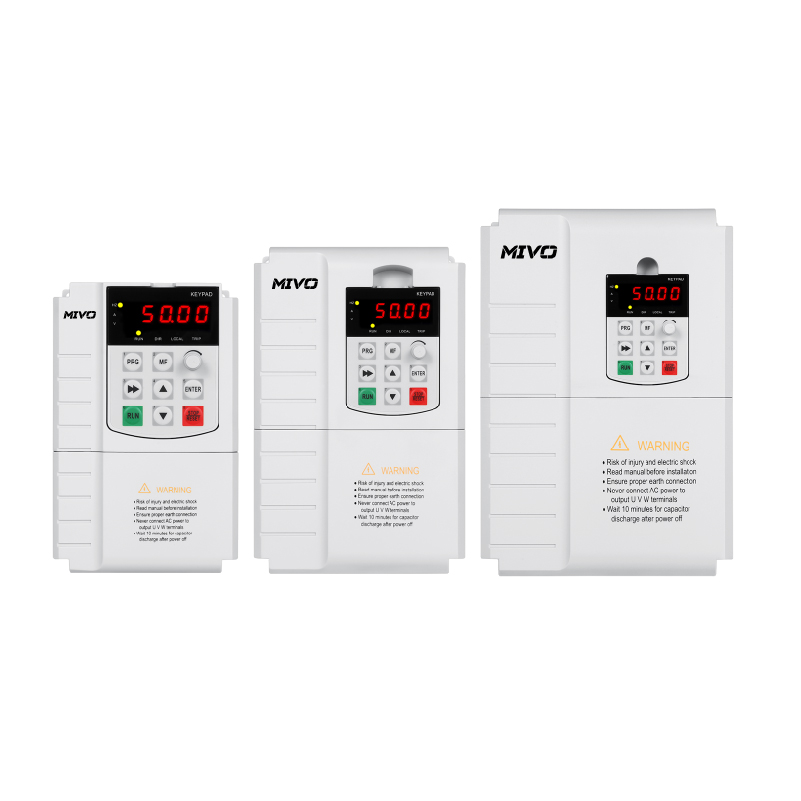

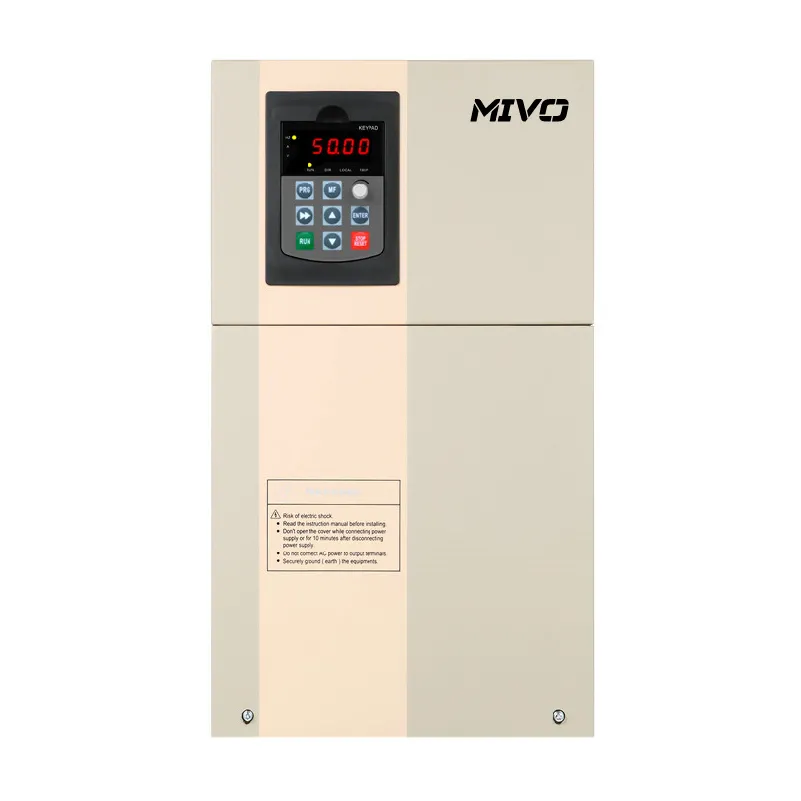

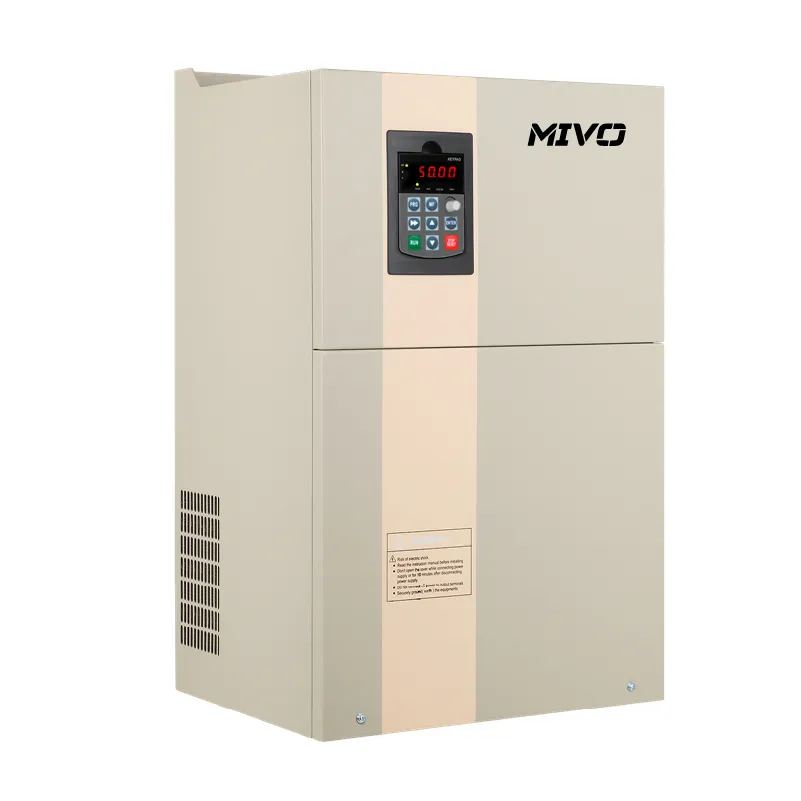

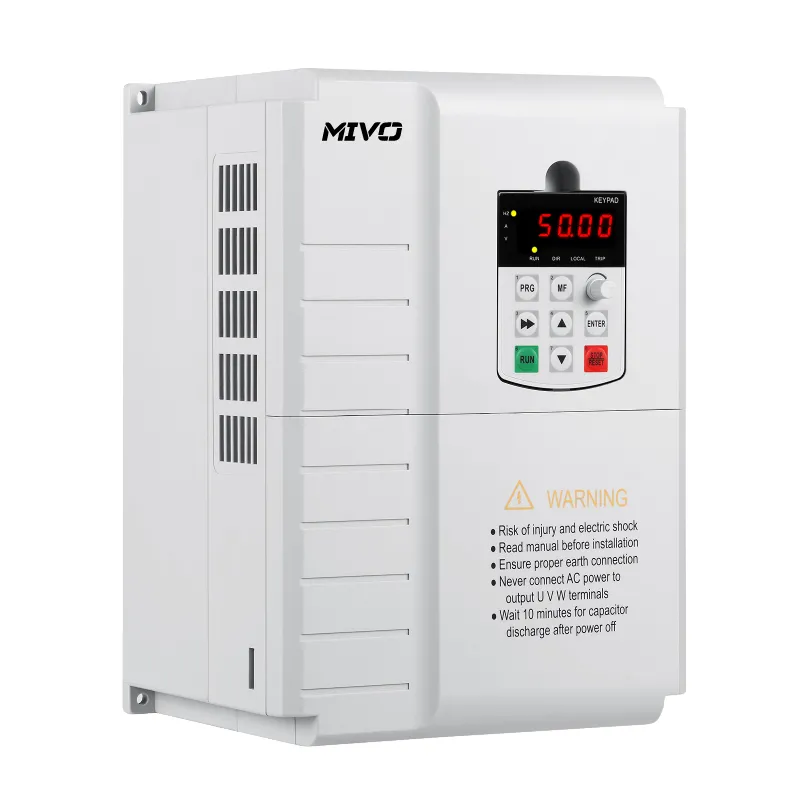

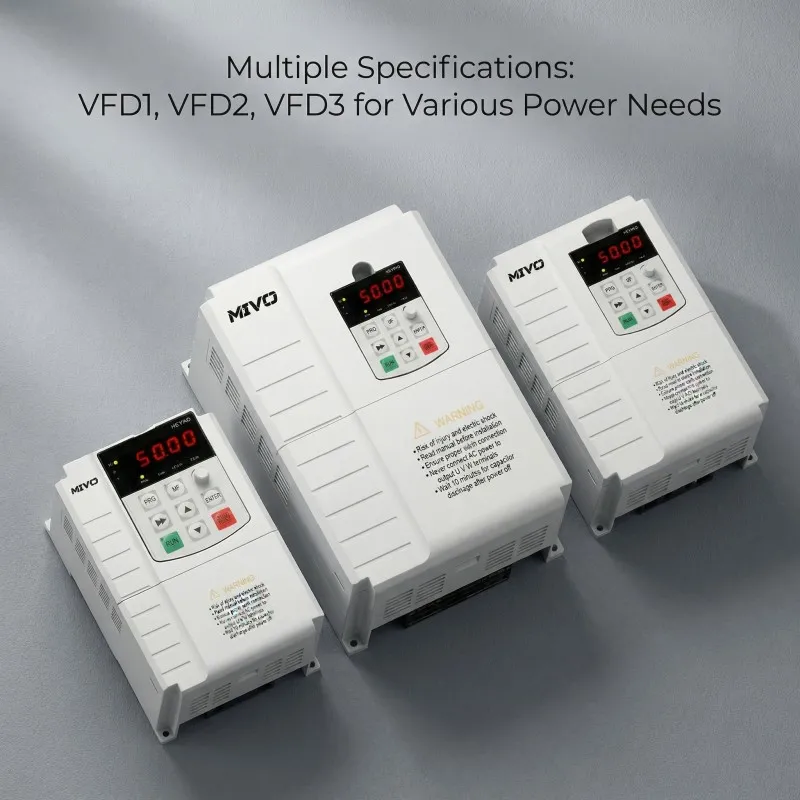

220V to 380V 3-Phase Converter

Items

Specification

Control mode

Control mode

V/F control

Sensorless in open loop

Close loop vector control

Starting torque

0.5Hz 150%

0.5Hz 180%

0.00Hz 180%

Speed adjust range

0:50

0.111111111

0.736111111

Speed stabilizing

±1%

±0.1%

±0.02%

precision

Torque precision

NO

NO

±5%

Motor type

General induction motor

permanent magnet synchronous motor (PMSM )

Function design

Highest frequency

General vector control :320Hz

V/f control: 3200Hz

frequency resolution

Digital setting: 0.01Hz

Analog setting:maximum×0.025%

Carrier frequency

0.5K to 16KHz, the carrier frequency can be automatically adjusted by temperature.

Frequency reference setting method

Digital components of the control panel, analog signals AI1 and AI2, potentiometer on the control panel, UP/DN control, communication, and PLC pulse frequency

Acceleration./deceleration characteristic

Linear and S-curve acceleration/deceleration modes, with a time range of 0.0 to 65,000 seconds.

V/F curve

3 modes: linear, multipoint, N Power

V/F separation

Two types of separation: total separation, and partial separation.

DC braking

DC braking frequency: 0.0 to 300Hz,

DC braking current: 0.0% to 100%

Braking unit

Standardly built for up to 4T22G (22kW), with optional builds available for 4T30G to 4T110G (30kW to 110kW), and external builds for capacities above 4T160kW.

Jog function

Job frequency range: 0.0 to 50.0 Hz, with the acceleration and deceleration time for Jogging.

Configured PID function

Easy to perform pressure, flow, and temperature closed-loop control.

PLC multiple speed

To achieve a 16-segment speed run using built-in PLC or terminal control.

Common Dc bus

Multiple drives utilize a single DC bus for energy equilibrium.

Auto voltage regulation (AVR)

Enable the system to maintain a constant output voltage despite grid fluctuations.

Over load tolerance capability

G type model: 150% rated current for 60 seconds, 180% rated current for 3 seconds.

P-type Model: Rated for 120% current for 60 seconds, 150% current for 3 seconds.

Stall protection control when over current, over voltage

Implement limiting automation to control the running current and voltage, thereby preventing frequent occurrences of overcurrent and overvoltage.

Rapid current limit function

Minimize the breakage of the IGBT module to protect the AC Drive and maximize the reduction of overcurrent faults.

Torque limit and torque control

The "Excavator" features automatic torque limiting during motor operation. Torque control is available in closed-loop vector control mode.

Features

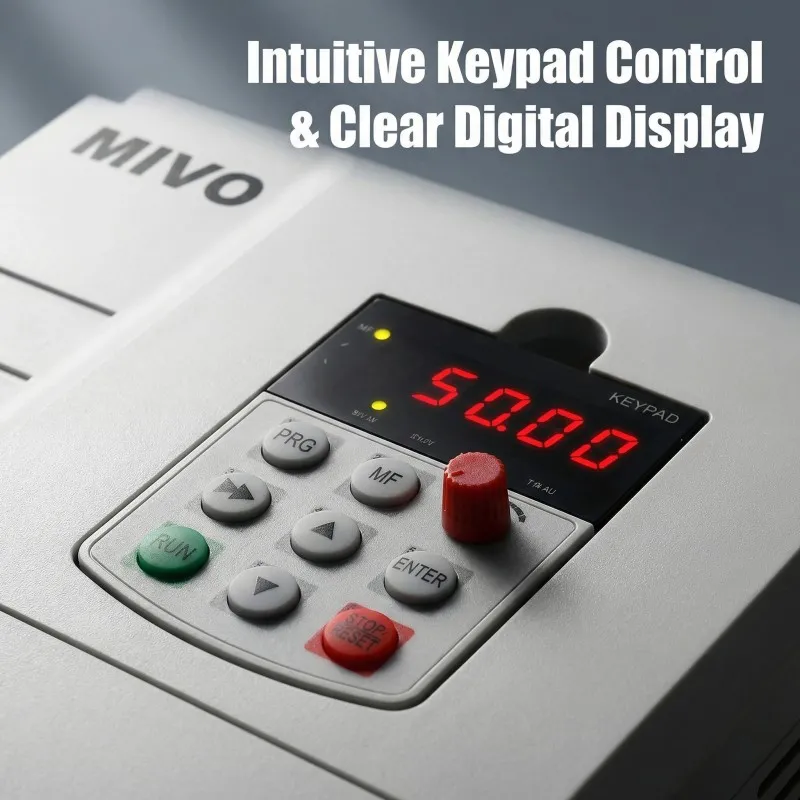

Friendly interface

Display "Hello" upon power-on.

Multiple function key JOG button

It can be set for forward jog, reverse jog, and a forward/reverse switch.

Timing control function

The total running time and calculating the total running time

2 group motor parameters

To achieve a seamless switchover between two motors, the control mode is selectable.

Motor over heat protection

Accepting the input of the motor temperature sensor signal through the AI1 terminals.

Multiple kinds encoder *

Compatible collector PG, differential PG, and rotary transformer encoder (resolver).

Command source

Control panel, control terminals, serial communication, switch freely.

Frequency source

Digital settings, analog current/voltage, pulse settings, serial communication, main and auxiliary combinations.

Protection function

Short circuit detection upon power-on, phase loss in input/output, overvoltage, overcurrent, undervoltage, overheating, and overload protection.

Environment

Application site

Indoor, free from exposure to sunlight, dust-free, non-corrosive, non-flammable gas, no oil or water vapor, and resistant to water immersion.

Altitude

Lower 1000m

Environment temperature

-10℃～+40℃, power derated for 40～50℃, rated current derated 1% for 1℃ increasing.

humidity

Less than 95%, no water condense.

storage

-40～+70℃

IP degree

IP20
