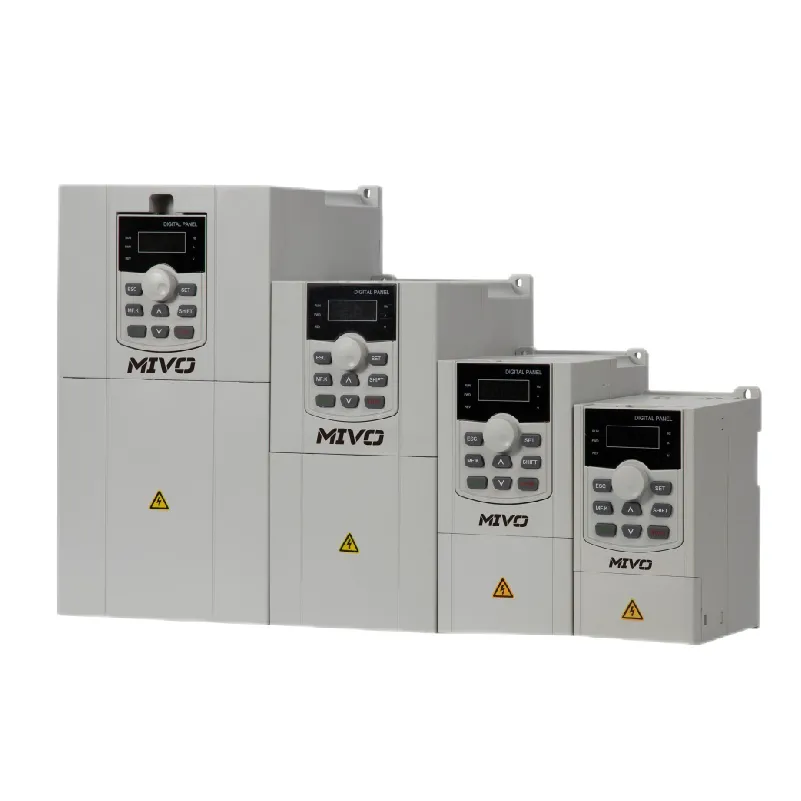

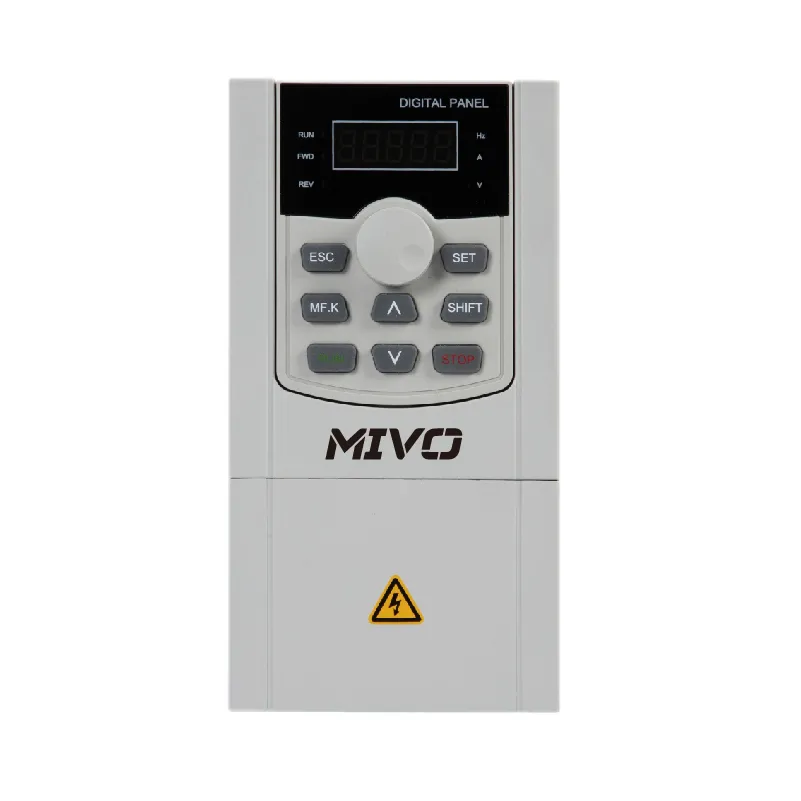

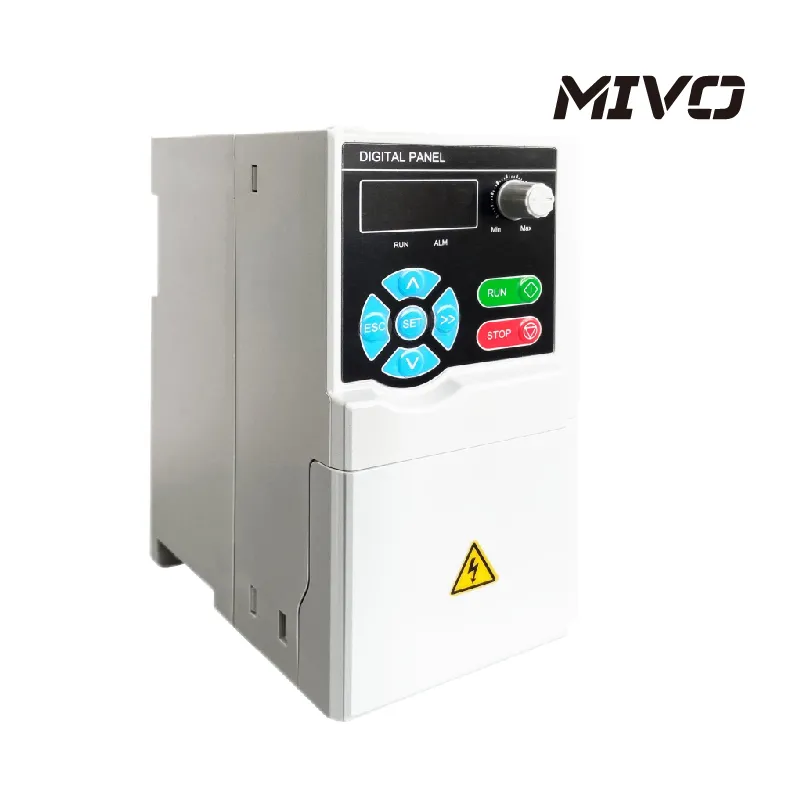

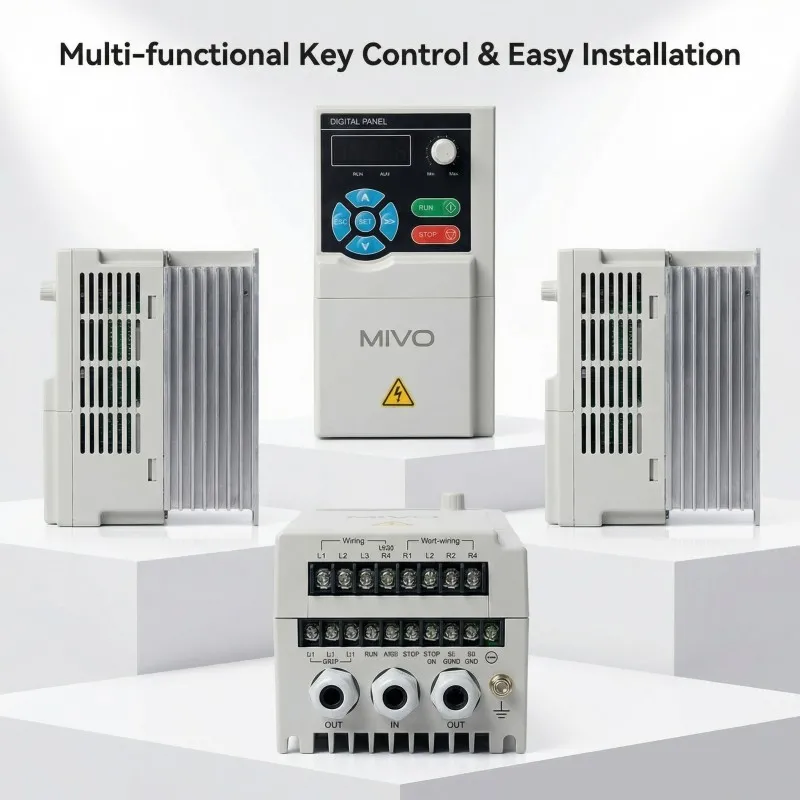

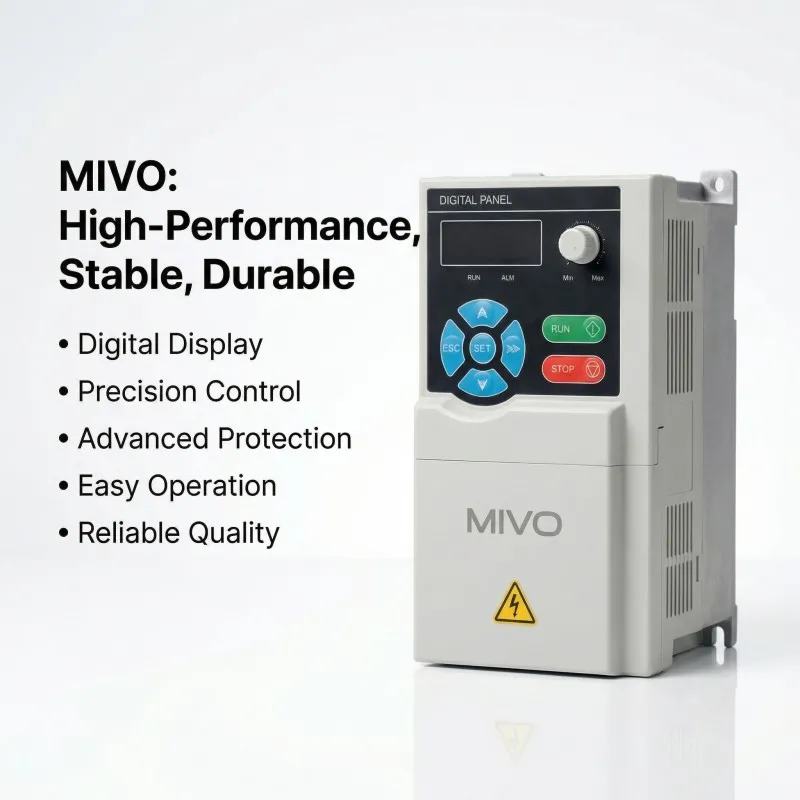

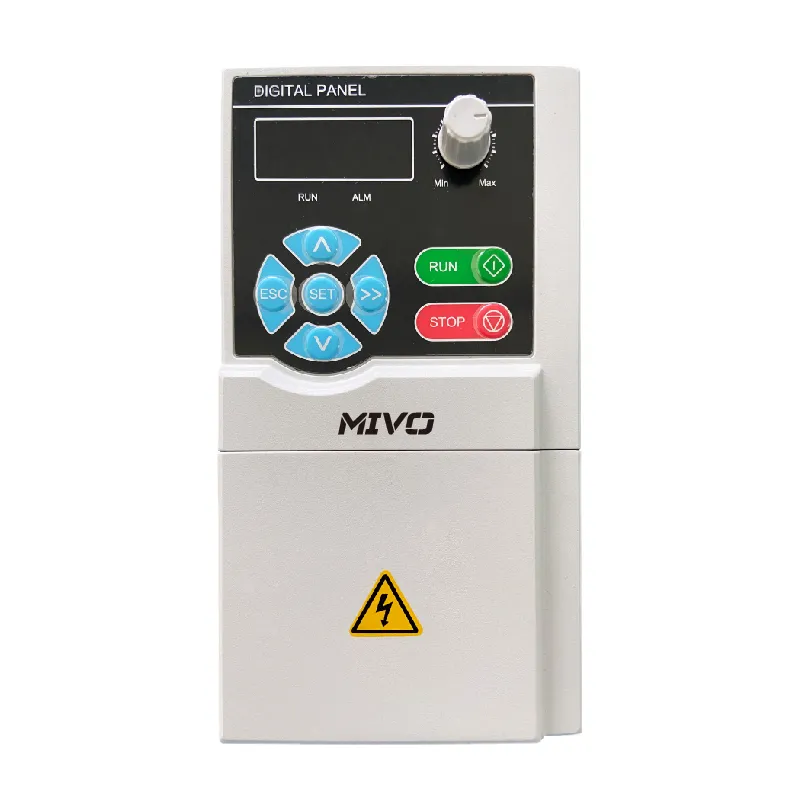

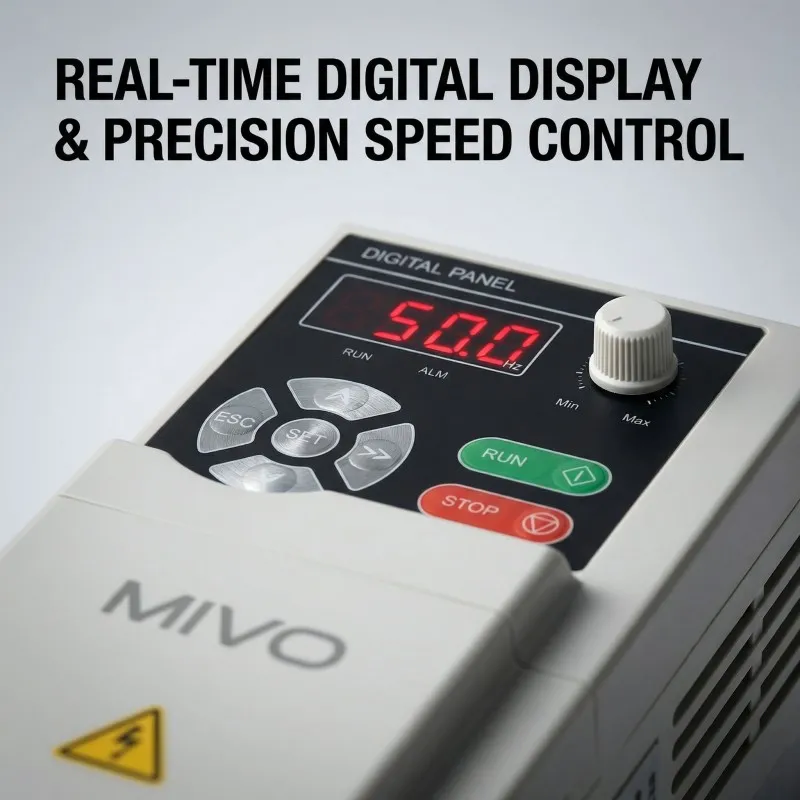

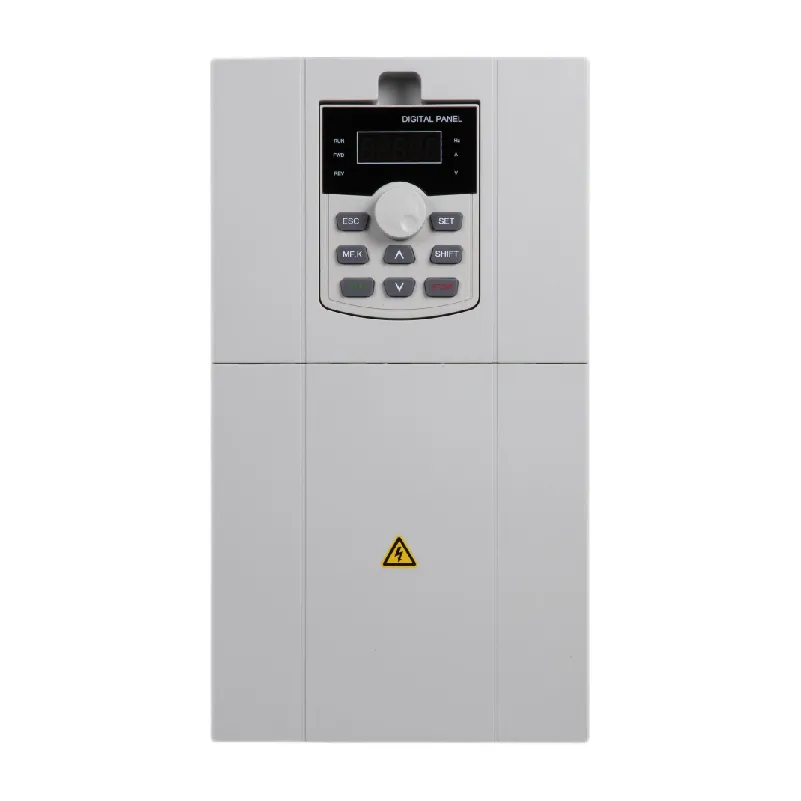

MV500-p Inverter: MPPT, Universal, Robust

· Brand: MIVO

· Product origin: China

· Delivery time: 3-7 working days

· Supply capacity: 200-500pcs/day

Inquire Now Next Products

About this item

The MV500-P series of photovoltaic inverters, specifically designed for solar pump applications, is engineered to operate both three-phase and single-phase AC pumps using DC solar energy as input. This series builds upon the robust hardware foundation of the KW500 pump VFD and incorporates advanced features such as Maximum Power Point Tracking (MPPT), rapid speed reduction, and adaptable pump connectivity.

The MV500-P series has garnered significant demand in regions plagued by water and electricity scarcity, where solar energy provides a sustainable solution for residential water needs, irrigation systems, and agricultural water demands. As a clean energy alternative, it serves as a viable replacement for conventional diesel generator sets.

MV500-p Solar Pump Inverter: MPPT, Universal Motor Drive

Product information

1. Core Tech & Compatibility: MPPT, rapid response, suits high-speed pumps/PMSM motors (no tuning)

2. Multi-Protection: Dry running, overcurrent, phase loss, and other safeguards

3. Smart Monitoring & Flexibility: PQ curve for flow calculation, AC/DC dual input

4. Harsh Environment Adaptation: Water level protection, independent air duct, three-proof paint for damp/dusty conditions

5. High-Efficiency Hardware: Imported IGBT modules, lightning protection, remote control; MPPT 99.8% efficiency, power factor ≥0.96 (≤15KW)

Specifications

Shenzhen ZK ZK500-P solar pump Inverter catalog 2025

Item		Specifications
Input	Rated Voltage/Frequency	80-450VDC for D1 110V pumps, 0.75KW-2.2KW150-450VDC for D2 220V pumps, 0.75KW-2.2KW250-800VDC for D3 380V pumps, 0.75KW-500KWAC and DC hybrid input
	Recommended MPPT voltage(VDC)	1S series: Vmp 131 to 350 VDC2S series: Vmp 280 to 375VDC4T series: Vmp 450 to 750 VDC/ Max 900VDC is optional
	VFD Efficiency	above 96%
	MPPT Efficiency	above 99.6%
	Power factor	above 0.94( with DC reactor)
	Allowable Variablerange	Voltage:-20%~+20%, Frequency:±5%
Output	Rated Voltage	0~110V 220V 380V 480V
	Frequency Resolution	0.01Hz
	Overload capacity	150% 1 minute;180% 10 second;200% 0.5 second
Basic Functions	Motor type	permanent magnet servo motor and asynchronous motor pumps.
	Solar pump control special performance	MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation,dry run protection, low stop frequency protection, minimum power input, motor maximumcurrent protection, flow calculating, energy generated calculating
	VFD funciton when AC grid input	Automatic voltage regulation (AVR) ，Overvoltage and overspeed losscontrol ，Fast current limiting function ，When the grid voltage changes, it can automatically keep the output voltage constant ，Automaticallylimits current and voltage during operation to prevent frequentovercurrent and overvoltage trip ，Minimize overcurrent faults and protect the normal operation of the product
	Running mode	MPPT , CVT, variable frequency mode
	Communication	RS485 Standard Interface,supporting two formats MODBUS protocol
Kinds of Protection functions		Over Current protection;Over Voltage protection;Under Voltage protection; Over heat protection;Overload protection
Kinds of Protection functions		Short circuit detection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection and overload protection of electrified motor
Environment	Altitude	Below 1000m; above 1000m, derated 1% for every additional 100m.
	temperature	-10℃~+50℃
	Ambient temperature	Less than 90%RH, no water condenses
	Vibration	Less than 5.9m/sec 2(0.6G)
	Storage temperature	-30℃~+60℃
Structure	Level of Protection	standard IP20, operation IP54 IP55
Structure	Cooling-down method	Forced air cooling
Installation		Indoor, ,free from direct sunlight, dust, corrosive gas,Oiliness gas, water vapour

Model List

Model no.	Ratecurrent(A)	Rate Power(KW)	Input DCrange(VDC)	Best Voc(VDC)	Output ACVoltage(VAC)
220V D2 Type, 150-450VDC input range, 1/3phase 0-220VAC output
MV500-P-2S-R75G-B	4A	0.75KW	150-450	372VDC	0-220
MV500-P-2S-1R5G-B	7A	1.5KW	150-450	372VDC	0-220
MV500-P-2S-2R2G-B	10A	2.2KW	150-450	372VDC	0-220
MV500-P-2S-004G-B	16A	4.0KW	150-450	372VDC	0-220
380V D3 Type, 250-800VDC input, 3phase 0-380VAC output
MV500-P-4T -R75G-B	2.5A	0.75KW	250-800	650VDC	0-380
MV500-P-4T -1R5G-B	3.8A	1.5KW	250-800	650VDC	0-380
MV500-P-4T -2R2G-B	5.1A	2.2KW	250-800	650VDC	0-380
MV500-P-4T -004G-B	9A	4.0KW	250-800	650VDC	0-380
MV500-P-4T -5R5G-B	13A	5.5KW	250-800	650VDC	0-380
MV500-P-4T -7R5G-B	17A	7.5KW	250-800	650VDC	0-380
MV500-P-4T -011G-B	25A	11KW	250-800	650VDC	0-380
MV500-P-4T -015G-B	32A	15KW	250-800	650VDC	0-380
MV500-P-4T -018G-B	37A	18KW	250-800	650VDC	0-380
MV500-P-4T -022G-B	45A	22KW	250-800	650VDC	0-380
MV500-P-4T -030G	60A	30KW	250-800	650VDC	0-380
MV500-P-4T -037G	75A	37KW	250-800	650VDC	0-380
MV500-P-4T -045G	91A	45KW	250-800	650VDC	0-380
MV500-P-4T -055G	112A	55KW	250-800	650VDC	0-380
MV500-P-4T -075G	150A	75KW	250-800	650VDC	0-380
MV500-P-4T -093G	170A	93 KW	250-800	650VDC	0-380
MV500-P-4T -110G	210A	110KW	250-800	650VDC	0-380
MV500-P-4T -132G	260A	132KW	250-800	650VDC	0-380
MV500-P-4T -160G	320A	160KW	250-800	650VDC	0-380
MV500-P-4T -185G	360A	185KW	250-800	650VDC	0-380
MV500-P-4T -200G	400A	200KW	250-800	650VDC	0-380
MV500-P-4T -220G	430A	220KW	250-800	650VDC	0-380
MV500-P-4T -250G	490A	250KW	250-800	650VDC	0-380
MV500-P-4T -280G	520A	280KW	250-800	650VDC	0-380
MV500-P-4T -315G	585A	315KW	250-800	650VDC	0-380
MV500-P-4T -355G	650A	355KW	250-800	650VDC	0-380
MV500-P-4T -400G	725A	400KW	250-800	650VDC	0-380
MV500-P-4T -***G	depend	Max to 500KW	250-800	650VDC	0-380
