· Brand: MIVO
· Product origin: Guangdong, China
· Delivery time: 7-15days
About this item

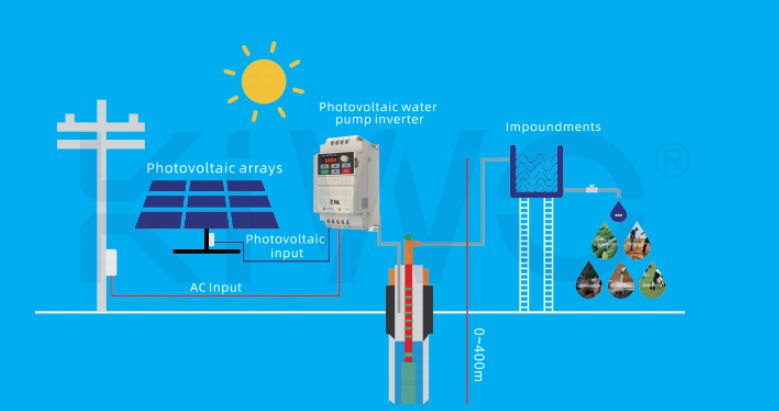

The MV300-P solar pump inverter utilizes both solar and grid inputs, particularly the MPPT function, to ensure a stable power output for the pump. Furthermore, it is equipped with multiple protection mechanisms to guarantee reliable and consistent operation. As a result, the KW300-P solar pump inverter is an efficient, practical, and environmentally friendly solar pump controller, highly recommended for use.
Product information

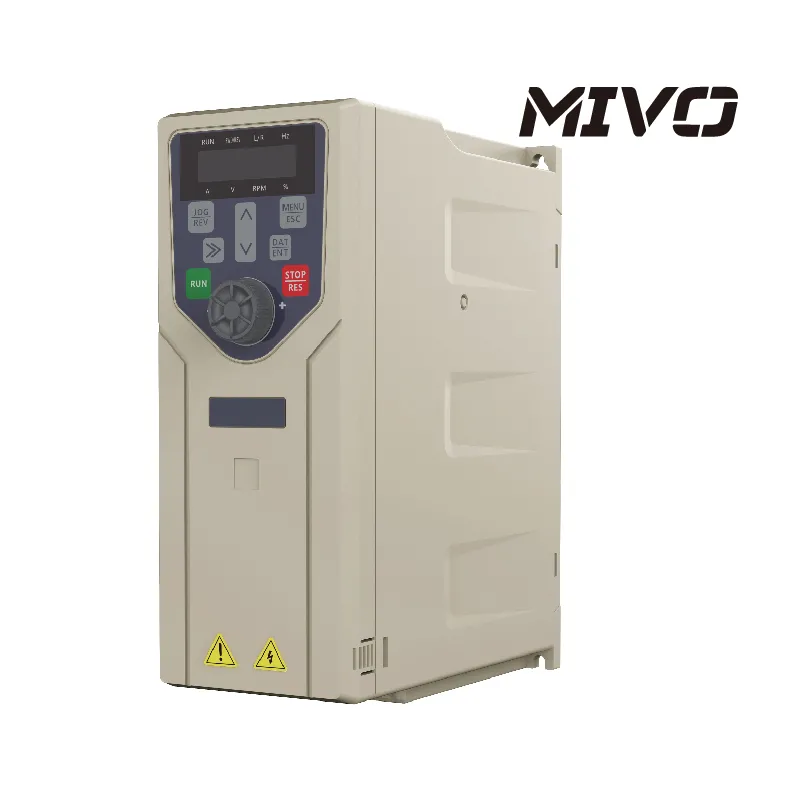

The entire series features a book-style design. The volume is approximately 54% smaller than comparable book-style products, and the space utilization ratio is high. This effectively conserves the customer's electrical cabinet space and reduces electrical cabinet costs.
An innovative EMC grounding design is employed. Grounding can be rapidly selected via the terminal or intermittently, effectively resolving EMC interference.

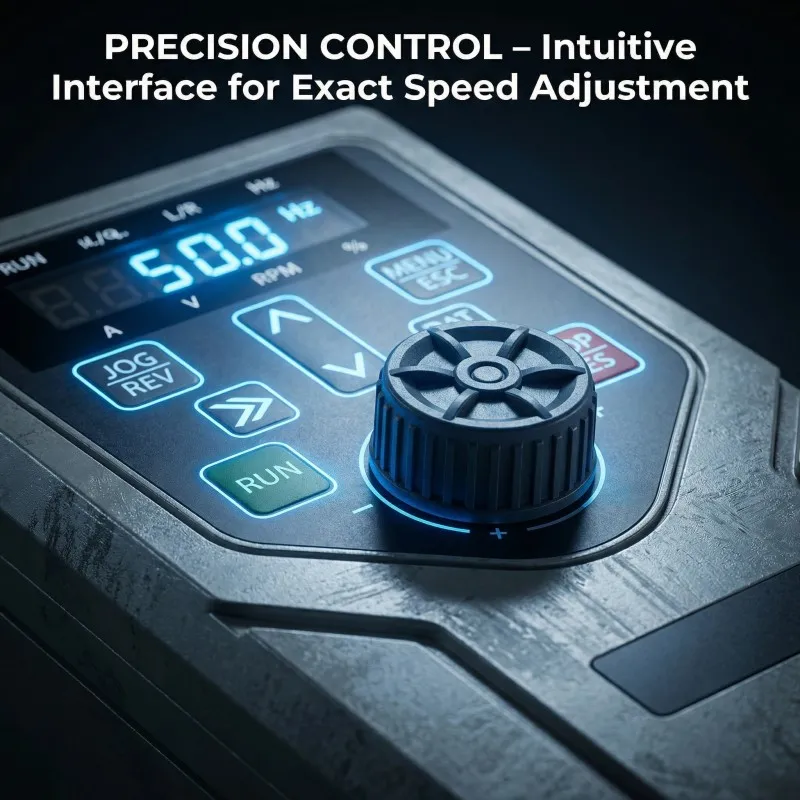

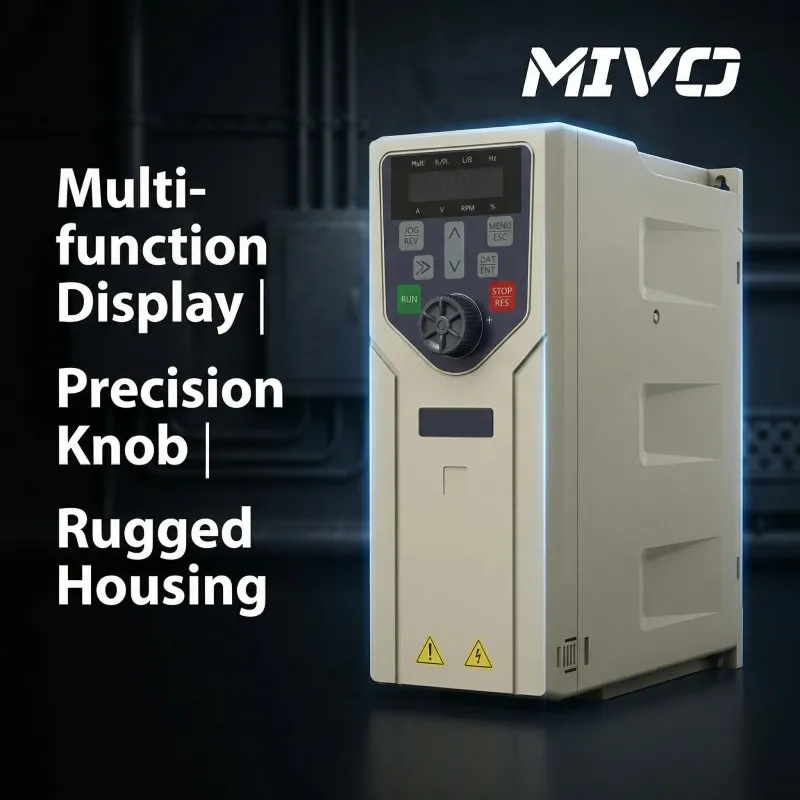

A newly designed panel keyboard with excellent operability is included. It features a built-in keyboard and supports an external keyboard for a dual-line display (control rights can be selected through the drive parameters of the built-in or external keyboard).

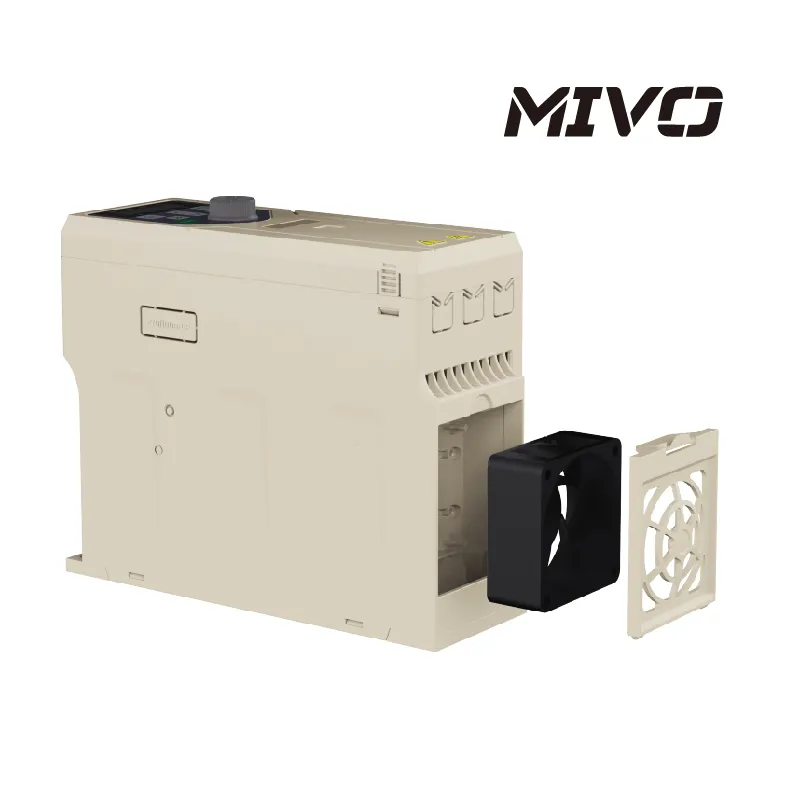

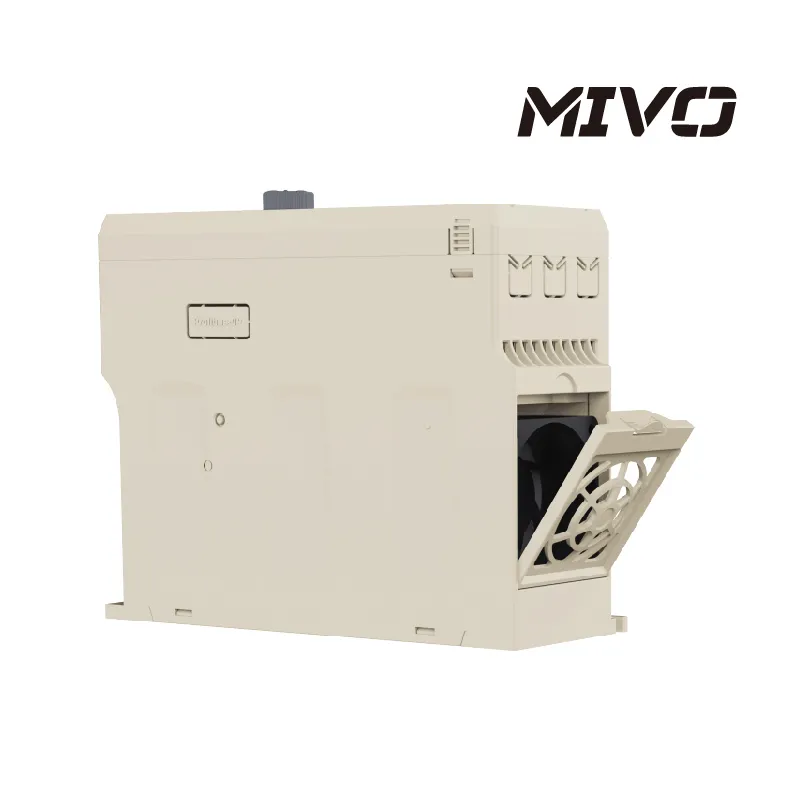

Wide tooth-surface heat dissipation and a high-wind-speed design ensure that full-power-range drives can be used without derating at high temperatures.
By continuously adjusting the output voltage and current of the inverter to match the maximum power point at the current light intensity, the maximum MPPT efficiency can reach 99.9%.
Technical Details
Multiple Specific Features
One - key operation.Dormancy, trial run, low - speed operation, minimum power mode, pump over - current.
Water full, output power restriction, PQ curve, pump cleaning, constant pressure regulation.
Maintenance Tools
FGAppStudio running on the PC tool offers comprehensive monitoring, configuration, optimization, and diagnostic services.
Intelligent monitoring enables smart irrigation
Custom PQ Curve
Based on the curve, it automatically computes the parameters that users care about most, such as flow rate, daily flow volume, cumulative flow volume, daily power output, and cumulative power output.
Intelligent IOT System
The IOT data platform, along with wireless transmission technologies (GPRS, Bluetooth, or Wi - Fi), makes intelligent judgments on water and fertilizer requirements to achieve smart irrigation.
Remote control via mobile APP can be done at home
Using Bluetooth, Wi - Fi, and GPRS wireless transmission technologies.
It supports widely - used multi - language switching.
The digital display of current data is clear and precise.
TECHNICAL SPECIFICATIONS
| Items | Specifications | |
| Power input | Voltage | 1T: 90VDC to 400VDC2S/2T: 150VDC to 450VDC4T: 250VDC to 800VDC/350VDC-800VDC |
| Frequency | 50Hz/60Hz, Tolerance ±5% | |
| Voltage range | Continuous voltage fluctuation ±15%,short fluctuation -15% ～ +15% | |
| Voltage out-of-balance rate<3% | ||
| Total Voc range (V) ofrecommended panels | 1T Type: 175-380VDC2S/2T Type: 360-430VDC4T Type: 620-750VDC | |
| Power output | Adaptive motor type | three-phase asynchronous motor, Permanent magnet synchronous motor |
| Output voltage (V) | three-phase: 0% ～ rated input voltage,error < ±3% | |
| Output frequency(Hz) | 0.00% ～ 599.00Hz; Unit: 0.01Hz | |
| Overload capacity | 150% rated current/1 min, 180% rated current/10s, 200% rated current/0.5s | |
| Basic functions | ACC/DEC time | 0.0 ～ 30000s |
| Switching frequency | 0.5kHz ～ 16kHz | |
| Frequency setting | Digital setting + control panel, Communication, Analog setting, Terminal pulse setting | |
| Motorstart-up methods | Started from starting frequency,Speed tracking start | |
| Motor stop methods | Ramp to stop, Free stop | |
| Protection function | Solar pump protectionfunction | Dry run, Low frequency, Low power, Dormancy, Water full, Pump over current protection |
| Basic protectionfunction | Inverter unit protection, Overcurrent during acceleration, Overcurrent during deceleration, Over current atconstant speed, Overvoltage during acceleration, Overvoltage during deceleration, Overvoltage at constantspeed,Undervoltage, Power input phase loss, Power output phase loss, Inverter overload, Motor overload,Current detection fault, Inverter temperature exceeds the limit, Load becoming 0 , Too large speed deviation, Short circuit to ground, External equipment fault, Fast current limit fault, Communication fault, Master slavecontrol communication disconnection, EEPROM read-write fault, PID feedback lost during running, Data storage fault, Control power supply fault, Motor switchover fault during running, Accumulative running time reached | |
| Communicationnetwork | Supports 485/Modbus protocol, Profibus-DP protocol, CANopen protocol, Profinet protocol, EtherCAT protocol, Modbus TCP protocol and CAN customized protocol | |
| Featured functions | Parameter copy, parameter backup, common DC bus, free switchover between two motors’parameters, flexible parameter displayed &hidden, various master & auxiliary setting and switchover, flying start, a variety of Accel/Decel curves optional, brake control, 16-step speed control programmable (2-step speed supports flexible frequency command), wobble frequency control, fixed length control, count function three history faults, over excitation brake, over voltage stall protection, under voltage stall protection, restart on power loss, skip frequency, frequency binding, four kinds of Accel/Decel time, motor thermal protection, flexible fan control, process PID control, simple PLC, multi-functional key programmable, droop control, autotuning, field-weakening control, high-precision torque restraint, V/f separatedcontrol | |
| Items | Specifications | |
| Place of operation | Indoors, no direct sunlight, free from dust, corrosive gases, flammable gases, oil mist, water vapor, water drop or salt, etc. | |
| Environment | Altitude | 0~2000m. De-rate 1% for every 100m when the altitude is above 1000 meters |
| Ambienttemperature | -10℃~ 50℃ , The rated output current should be derated 1% for every 1℃ when the ambient is 40℃~ 50℃ | |
| Relative humidity | 0~95%, no condensation | |
| Vibration | Less than 5.9m/s² (0.6g) | |
| Storagetemperature | -20℃~ +60℃ | |
| Others | IP grade | IP20 |
| Cooling method | Forced air cooling | |

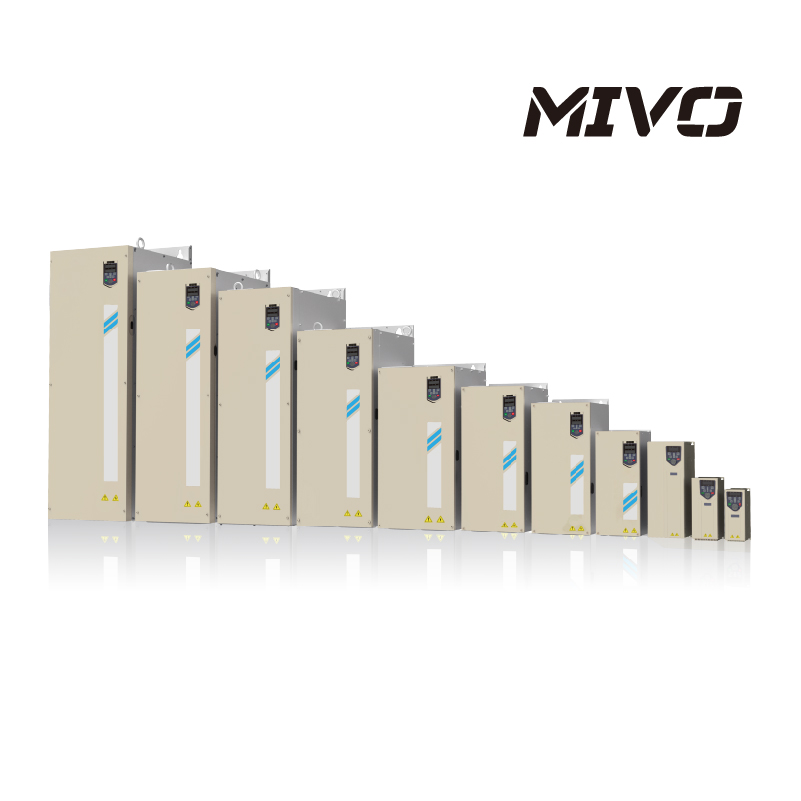

Model List
| Model | External and installation dimensions(mm) | NW(Kg) | GW(Kg) | OutlineSpecificationDiaGram | ||||||||
| W | H | H1 | D | W1 | W2 | H2 | B | d | ||||
| MV300-1T | ||||||||||||
| MV300-1T-0.75G-P | 76 |  200 | 193 | 160 | 61 | 62 | 193 | 5.5 | 3-φ5 | 1.2 | 1.5 | P1 |
| MV300-1T-1.5G-P | ||||||||||||
| MV300-2S/2T | ||||||||||||
| MV300-2S/2T-0.75G-P | 76 | 200 | 193 | 160 | 61 | 62 | 193 | 5.5 | 3-φ5 | 1.2 | 1.5 | P1 |
| MV300-2S/2T-1.5G-P | ||||||||||||
| MV300-2S/2T-2.2G-P | ||||||||||||
| MV300-2S/2T-4.0G-P | 100 | 242 | 232 | 165 | 84 | 85 | 231 | 5.5 | 3-φ5 | 2.3 | 2.6 | P2 |
| MV300-4T | ||||||||||||
| MV300-4T-0.75G-P | 76 | 200 | 193 | 160 | 61 | 62 | 193 | 5.5 | 3-φ5 | 1.2 | 1.5 | P1 |
| MV300-4T-1.5G-P | ||||||||||||
| MV300-4T-2.2G-P | ||||||||||||
| MV300-4T-4.0G-P | ||||||||||||
| MV300-4T-5.5G-P | 100 | 242 | 232 | 165 | 84 | 85 | 231 | 5.5 | 3-φ5 | 2.3 | 2.6 | P2 |
| MV300-4T-7.5G-P | ||||||||||||
| MV300-4T-11G-P | 116 | 320 | 306 | 185 | 98 | 98 | 307 | 5 | 3-φ5 | 3.5 | 5 | |
| MV300-4T-15G-P | 142 | 383 | 372 | 227 | 125 | 100 | 372 | 6 | 4-φ6 | 5.5 | 7.0 | |
| MV300-4T-18.5G-P | ||||||||||||
| MV300-4T-22G-P | ||||||||||||
| MV300-4T-30G-P | 173 | 430 | 408 | 230 | 150 | 150 | 416 | 8 | 4-φ7 | 13.3 | 14.3 | P3 |
| MV300-4T-37G-P | ||||||||||||
| MV300-4T-45G-P | 242 | 560 | 524 | 310 | 175 | 175 | 544 | 12 | 4-φ8 | 26.0 | 27.0 | |
| MV300-4T-55G-P | ||||||||||||
| MV300-4T-75G-P | ||||||||||||
| MV300-4T-90G-P | 270 | 638 | 595 | 350 | 195 | 195 | 615 | 15 | 4-φ10 | 36.0 | 40.0 | |
| MV300-4T-110G-P | ||||||||||||
| MV300-4T-132G-P | 349 | 738 | 681 | 403 | 220 | 220 | 715 | 13 | 4-φ18 | 65.0 | 72.0 | |
| MV300-4T-160G-P | ||||||||||||
| MV300-4T-185G-P | 360 | 940 | 851 | 480 | 200 | 200 | 910 | 21 | 4-φ18 | 90.0 | 102.0 | |
| MV300-4T-200G-P | ||||||||||||

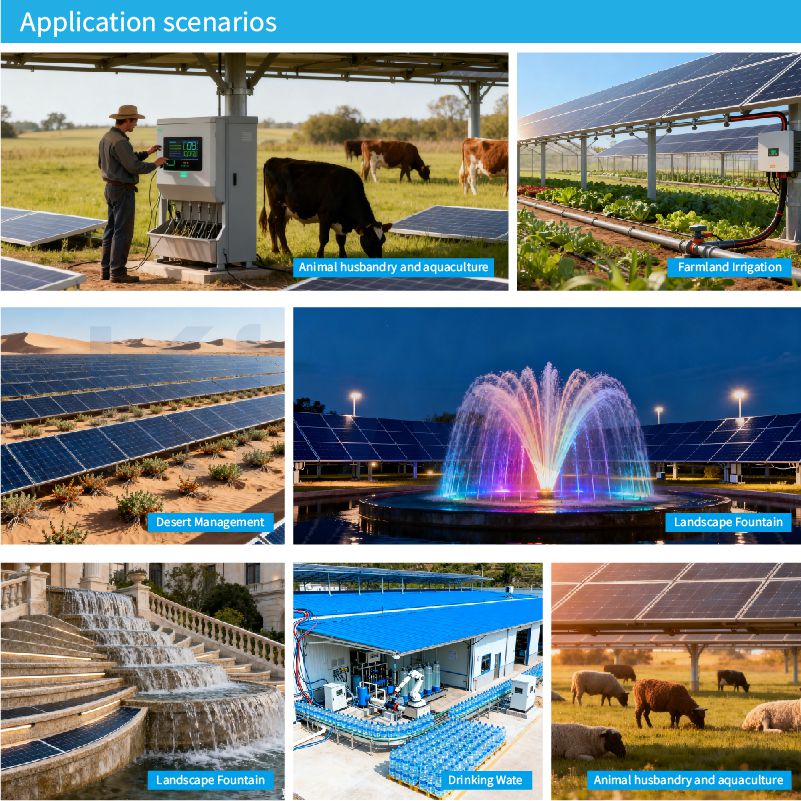

Application
